Coax cable 100dB 2 times shielded CCS white
Description
Coax cable 100dB 2 times shielded CCS white
for digital SAT- and CATV-cable systems
for digital SAT- and CATV-cable systems
- digital-ready for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
- double signal shield for adequate protection over long distances
- meter scaling on the cable simplifies building installation

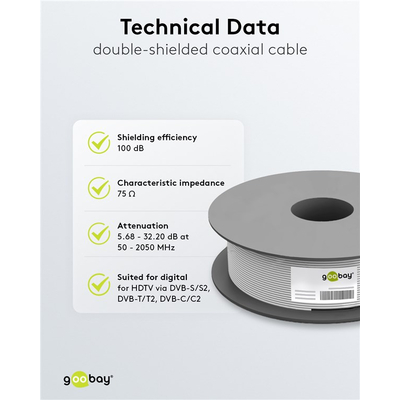

Technical specifications:
Performance
- Fire class (CPR) according to DIN EN 13501-6 Eca
Cable
- Cable type coaxial cable
- Dielectric diameter 4.6
- Meter scaling yes
- inner conductor, core diameter 1.02
- Inner conductor material CCS 15 (15% copper-clad steel)
- Number of shieldings 2 x
- Type 1, shielding foil (aluminium)
- Type 2, shielding braid (copper) 64x
- Shielding efficiency 100 dB
- Signal transmission
- Impedance 75 O
General
- Outer sheath material PVC
- Color white
- Operating temperature from -20 °C
- Operating temperature up to 75 °C
