Coax cable 100dB 2 times shielded CCS white
Description
Coax cable 100dB 2 times shielded CCS white
Class A tested, for digital SAT- and CATV-cable systems
Class A tested, for digital SAT- and CATV-cable systems
- tested and classified as Class A (as per EN 50117)
- digital-ready for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
- double signal shield for adequate protection over long distances
- meter scaling on the cable simplifies building installation
Technical specifikations:
Performance
- Fire class (CPR) according to DIN EN 13501-6 Eca
- Dangerous substances > 0.1 % w/w N/A

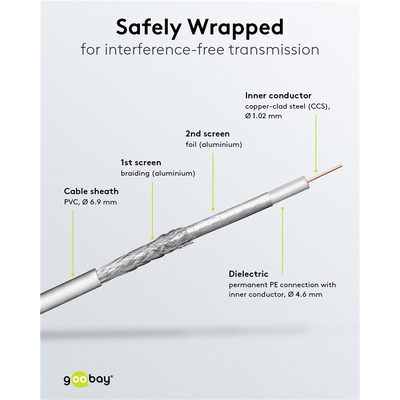

Cable
- Cable type coaxial cable
- Shielding class Class A
- Dielectric diameter 4.8
- Meter scaling yes
- Cable sheath diameter (approx.) 6.8 mm
- inner conductor, core diameter 1.1
- Inner conductor material CCS 21 (21% copper-clad steel)
- Number of shieldings 2 x
- Type 1, shielding foil (aluminium)
- Type 2, shielding braid (aluminium) 128x

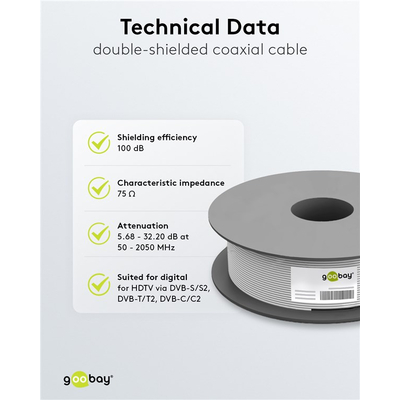

- Shielding efficiency 100 dB
- Signal transmission
- Impedance 75 O
General
- Outer sheath material PVC
- Color white
- Operating temperature from -20 °C
- Operating temperature up to 75 °C
