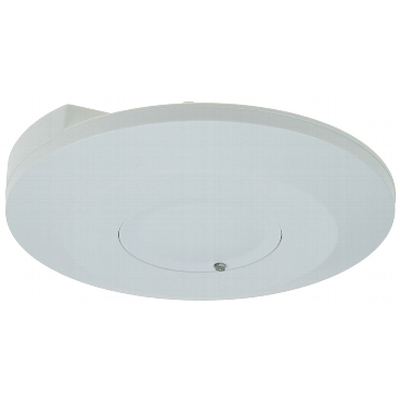

Ceiling motion detector LED suitable, 8m detection, 2000W white CBM-Flat-HF
Description
Ceiling motion detector LED suitable, 8m detection, 2000W white CBM-Flat-HF
Now also as HF motion detector! Ideal e.g. the staircase or the corridor. Starting at 1 watt, the detector switches your modern LED lights, LED lamps and LED lights, as well as conventional fluorescent lamps and fluorescent tubes. You can adjust the time and light sensitivity with a simple knob. Delivery includes installation material and instructions.
Now also as HF motion detector! Ideal e.g. the staircase or the corridor. Starting at 1 watt, the detector switches your modern LED lights, LED lamps and LED lights, as well as conventional fluorescent lamps and fluorescent tubes. You can adjust the time and light sensitivity with a simple knob. Delivery includes installation material and instructions.
- Power range resistive loads 10-2000W
- Power range inductive loads 1-500W

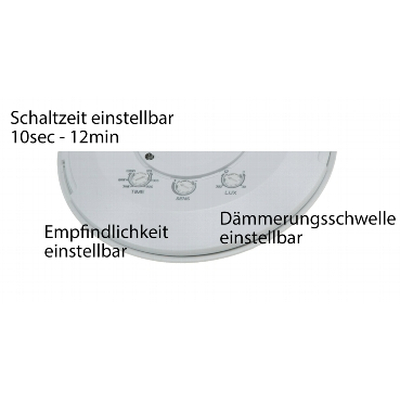

- Damping threshold adjustable (3-2000 lux)
- Sensitivity adjustable
- coverage angle 360 ??°
- Range 1-8m
- Switching time 10 sec. - 12 min.
- 114mm Ø, only 24mm flat!
- Installation height for ceilings 2.2 - 5m
- Simple installation through 4-pin connection Operation at 230V ~ / 50Hz
- 3-wire connection
- Suitable for parallel connection Self-consumption StandBy 0.4W, operating 0.9W IP20, indoor only
- is used as the presence detector switch OFF after last movement of the set time
