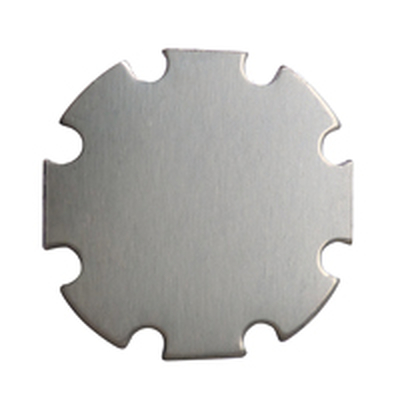

COB LED 5W warm white 3000-3500K 15-18VDC
Description
COB LED 5W warm white 3000-3500K 15-18VDC
Due to the high luminous intensity, these LEDs can be used not only for signal applications, but also for illumination purposes.
Technical Details:
Due to the high luminous intensity, these LEDs can be used not only for signal applications, but also for illumination purposes.
Technical Details:
- Luminous flux 450-550lm
- 5W power
- light color warm white
- Color temperature 3000-3500K
- light angle 140 °
- Operating voltage 15-18V =
- Forward voltage: 12-13V
- on-state current: 300-350 mA
- Socket -
- 100% Bright 0.5 sec.
- On / Off 20,000x
- Lighting duration 30,000 hrs.
- Power factor dependent on ballast
- Forward Current: 300mA
- Mercury Hg 0.0mg
- Measure (dia. x H): approx. 28 x 2.4 mm
- Inadequate cooling inevitably leads to the destruction of the LED!
- Energy efficiency class A +
- not dimmable
- Not suitable for accent lighting
- Caution! Operation on a constant current power supply
