Built-in motion detector 230VAC 800W Ø 15mm LED suitable white; - CT-PIR Mini

Item number: 100215650

Category: PIR Motion detector

9,95 €

including 19% VAT. , (Standard)

From piece Price per unit
2 9,65 €
In stock!

Shipping time: 2 - 5 workdays

piece

Description

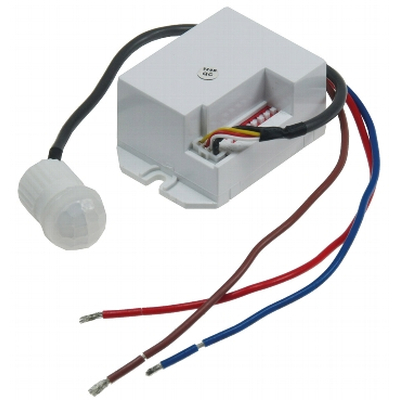

Built-in motion detector 230VAC 800W Ø 15mm LED suitable white; - CT-PIR Mini
Thanks to the small installation diameter of Ø 12mm, this detector can be installed almost imperceptibly in lamp systems, hollow ceilings or cabinets.

  • Acquisition angle approx. 360 °
  • Power range 10-800W (resistive load)
  • switching power at LED and ESL max. 200 W
  • Switching power of flashlight 800 W, LED up to 200W
  • Installation height 2 - 3 m
  • Operation at 230V / 50Hz Self-consumption StandBy 0.75W, 0.85W in operation
  • sensitivity adjustable
  • Reaction 0.8-1.8ms
  • Switching duration adjustable (5/30 seconds or 1/3/5 or 8 minutes)
  • Range max. 6m
  • for inside IP20 Box: 56 x 34 x 25mm, sensor dimensions 24mm x Ø15mm, Ø12mm with 12cm cable
