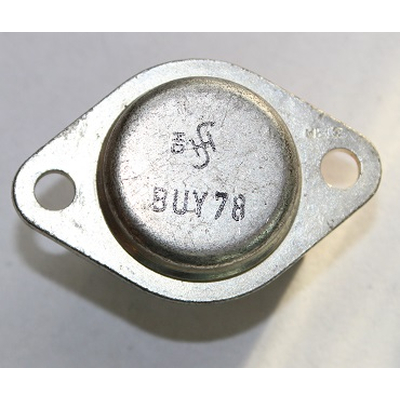

BUY 78 NPN 600V 7A 60W TO3
Description
BUY78
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 60
Maximum collector-base voltage |Ucb|, V: 600
Maximum collector-emitter voltage |Uce|, V: 300
Maximum emitter-base voltage |Ueb|, V: 7
Maximum collector current |Ic max|, A: 5
Maksimalna temperatura (Tj), °C: 200
Transition frequency (ft), MHz: 15
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 5
Noise Figure, dB: -
Package of BUY78 transistor: TO3
