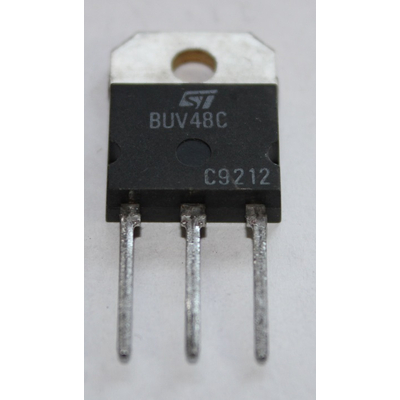

BUV 48C NPN 700V 15A 120W TOP03
Description
BUV48C
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 120
Maximum collector-base voltage |Ucb|, V: 1200
Maximum collector-emitter voltage |Uce|, V: 700
Maximum emitter-base voltage |Ueb|, V: 7
Maximum collector current |Ic max|, A: 15
Maksimalna temperatura (Tj), °C: 200
Transition frequency (ft), MHz: 5
Collector capacitance (Cc), pF: 250
Forward current transfer ratio (hFE), min: 10
Noise Figure, dB: -
Package of BUV48C transistor: TOP3
