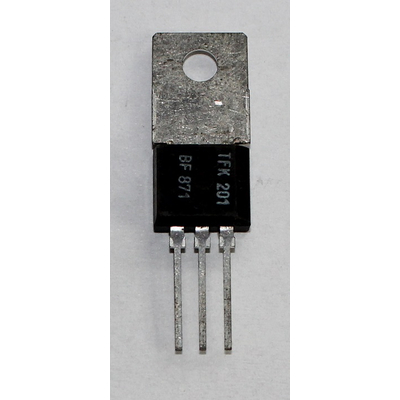

BF871 NPN 300V 100mA 1,6W TO202
Description
BF871 NPN 300V 100mA 1,6W TO202
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 1.6 W
- Maximum Collector-Base Voltage |Vcb|: 300 V
- Maximum Collector-Emitter Voltage |Vce|: 300 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 0.1 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 60 MHz
- Collector Capacitance (Cc): 2 pF
- Forward Current Transfer Ratio (hFE), MIN: 50
- Noise Figure, dB: -
- Package: TO202
