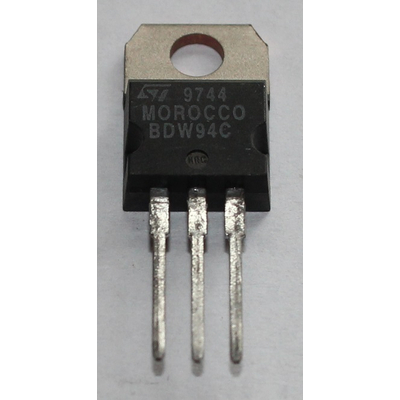

BDW94C PNP 100V 5AW TO220
Description
BDW94C PNP 100V 5A 80W TO220
- Material of transistor: Si
Polarity: PNP
Maximum collector power dissipation (Pc), W: 80
Maximum collector-base voltage |Ucb|, V: 100
Maximum collector-emitter voltage |Uce|, V: 100
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 12
Maksimalna temperatura (Tj), °C: 150
Transition frequency (ft), MHz: 20
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 15000
Noise Figure, dB: -
Package of BDW94C transistor: TO220
