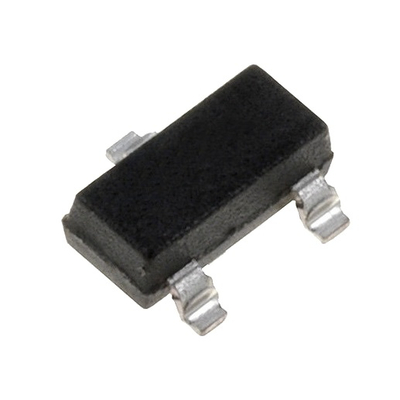

BC817-40 SMD NPN 50V 500mA 310mW SOT23
Description
BC817-40 SMD NPN 50V 500mA 310mW SOT23
- MD Transistor Code: 2P_6C_6Cp_6Cs_6Ct_6CW_6CZ_8FC_K6C_NAC
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 0.31 W
- Maximum Collector-Base Voltage |Vcb|: 50 V
- Maximum Collector-Emitter Voltage |Vce|: 45 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 0.5 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 200 MHz
- Collector Capacitance (Cc): 10 pF
- Forward Current Transfer Ratio (hFE), MIN: 250
- Noise Figure, dB: -
- Package: SOT23
