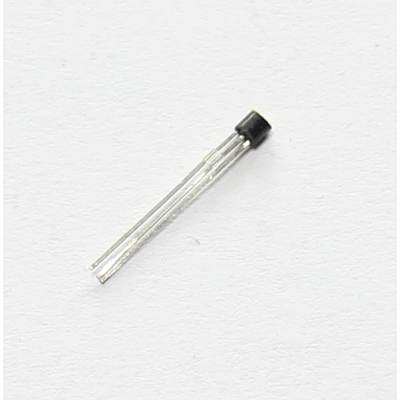

BC200 PNP 20V 50mA 50mW X16
Description
BC200 PNP 20V 50mA 50mW X16
- Material of Transistor: Si
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 0.05 W
- Maximum Collector-Base Voltage |Vcb|: 20 V
- Maximum Collector-Emitter Voltage |Vce|: 20 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 0.05 A
- Max. Operating Junction Temperature (Tj): 125 °C
- Transition Frequency (ft): 90 MHz
- Collector Capacitance (Cc): 5 pF
- Forward Current Transfer Ratio (hFE), MIN: 50
- Noise Figure, dB: -
- Package: X16
