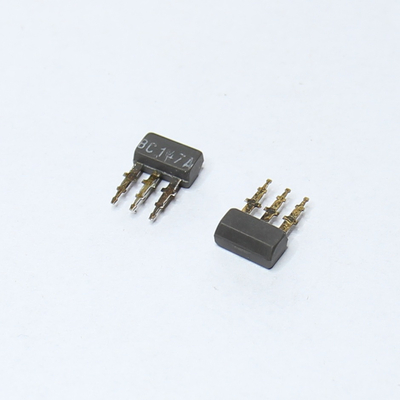

BC147A NPN 50V 100mA 300mW SOT25
Description
BC147A NPN 50V 100mA 300mW SOT25
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 0.25 W
- Maximum Collector-Base Voltage |Vcb|: 50 V
- Maximum Collector-Emitter Voltage |Vce|: 45 V
- Maximum Emitter-Base Voltage |Veb|: 6 V
- Maximum Collector Current |Ic max|: 0.2 A
- Max. Operating Junction Temperature (Tj): 125 °C
- Transition Frequency (ft): 150 MHz
- Collector Capacitance (Cc): 5 pF
- Forward Current Transfer Ratio (hFE), MIN: 110
- Noise Figure, dB: -
- Package: X09
