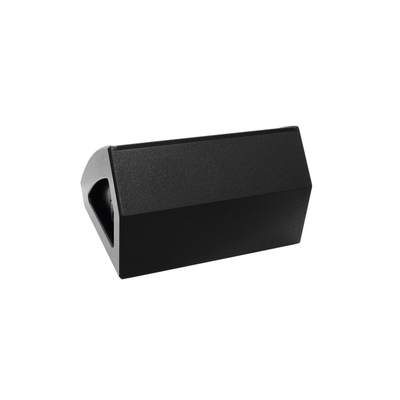

Active Stage monitor coaxial - KM-115A
Description
Active Stage monitor coaxial - KM-115A
- ctive 2-way coaxial stage monitor for live and playback applications
- Class D/AB biamp power amplifier
- 38 cm bass speaker (15") and 3.5 cm compression driver (1.35")
- Bassreflex cabinet provides deep bass and high SPL

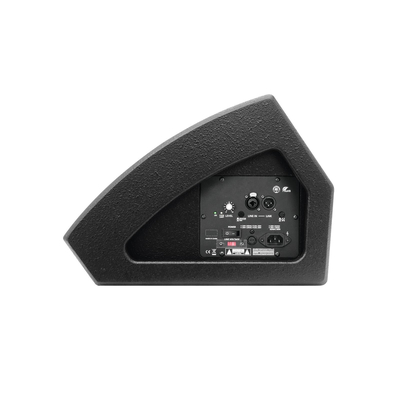

- Line input (XLR/6.3 mm jack)
- Parallel XLR output for linking further active speaker systems
- Low cut, volume control
- Dual limiter and overload protection
- Rugged MDF housing with scratch-resistant lacquer surface and impact-resistant steel grille

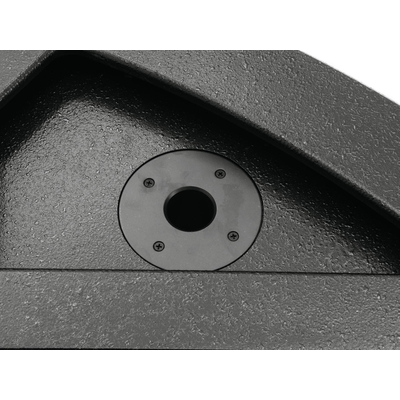

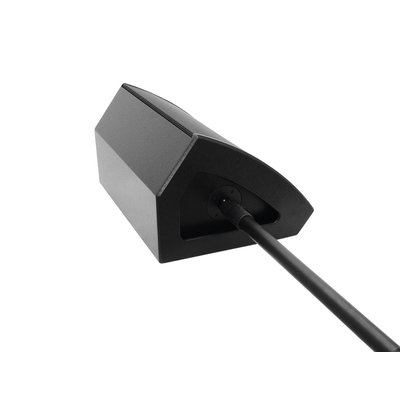

- Flange for stand installation
Technical specifications
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 300 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: | 250 W RMS LF; 50 W RMS HF |
| Program power: | 500 W |
| Frequency range: | 45 - 20000 Hz |
| Max. SPL: | 124 dB |
| Dispersion angle: | 60° x 60° |
| Connections: | Input: line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
| Input channels: | 1 x mono via XLR or jack, channel control via Rotary dial |
| Speaker: | 1 x woofer (15") approx. 38 cm with ferrit magnet 1 x Voice coil compression tweeter highs (1.35") approx. 3,5 cm |
| Type of speaker: | Compact cabinet speaker; Coaxial speaker; stage monitor |
| Dimensions: | Width: 60 cm Depth: 37 cm Height: 54 cm |
| Weight: | 22,90 kg |
