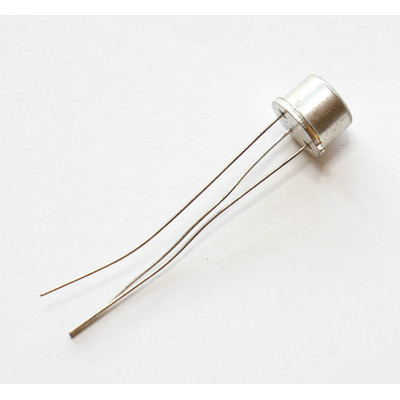

AS429 NPN 25V 200mA 150mW TO5
Description
AS429 NPN 25V 200mA 150mW TO5
- Material of Transistor: Ge
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 0.15 W
- Maximum Collector-Base Voltage |Vcb|: 25 V
- Maximum Collector-Emitter Voltage |Vce|: 15 V
- Maximum Emitter-Base Voltage |Veb|: 20 V
- Maximum Collector Current |Ic max|: 0.2 A
- Max. Operating Junction Temperature (Tj): 85 °C
- Transition Frequency (ft): 10 MHz
- Collector Capacitance (Cc): 16 pF
- Forward Current Transfer Ratio (hFE), MIN: 30
- Noise Figure, dB: -
- Package: TO5
