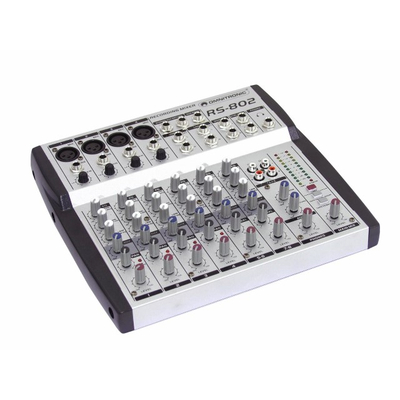

8 channel studio and live mixer RS-802

Item number: 6010040075

Category: Stage mixer

149,00 €

including 19% VAT. , (Standard)

From piece Price per unit
2 144,53 €
Currently unavailable or sold out!

Description

8 channel studio and live mixer RS-802
  • Low-noise 8-channel mic/line mixer
  • 4 mono inputs with XLR sockets, +48V phantom power and balanced line inputs
  • 2 stereo inputs with balanced 6.3 mm jack sockets
  • Stereo inputs can also be operated mono
  • 3-band EQ for all inputs
  • Peak LED per mono input
  • Aux Send per channel for controlling external effectors
  • Stereo Aux Return with balanced 6.3 mm jack sockets
  • Separate Main Mix, Booth and headphones outputs
  • Tape inputs assignable to Master, Booth/headphones
  • Precise 10-fold stereo LED meter

Technical specifications:

Power supply: 2 x 20 V AC, 50/60 Hz ~
via included power unit
Power consumption: 15 W
Inputs:
4 x mono XLR or balanced 6.3 mm jack
2 x stereo balanced 6.3 mm jacks
1 x Aux Return balanced 6.3 mm jacks
1 x Tape In stereo RCA
Outputs:
1 x Master Out balanced 6.3 mm jacks
1 x Control Room Out balanced 6.3 mm jacks
1 x Aux Send balanced 6.3 mm jacks
1 x Tape Out stereo RCA
Frequency range:
Microphone: 10 Hz - 60 kHz, ±3 dB
Mono: 10 Hz - 60 kHz, ±3 dB
Stereo: 10 Hz - 55 kHz, ±3 dB
Distortion: 0.01 %
S/N ratio: 112 dB
Tone control/channel:
Treble: ±15 dB at 12 kHz
Middle: ±15 dB at 2.5 kHz
Bass: ±15 dB at 80 Hz
Dimensions (WxDxH): 270 x 250 x 55 mm
Weight: 3 kg
Shipping weight: 3.25 kg
