6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone - MCS-1250 MK2
Description
6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone - MCS-1250 MK2
- 6-zone stereo amplifier for multi-zone PA applications
- Updated version with touch pad wall controller
- 12 x 50 W/4 ohms per zone
- Bridge mode with 100 W/8 ohms individually selectable per zone
- Efficient Class D technology
- 6 stereo inputs expandable to 18 stereo zones with further units
- Matrix input assignment: input sources are freely assignable to each channel
- 6 pre-amp outputs to connect external power amplifiers
- Convenient control via touch pad wall controller or IR remote control
- Incl. 6 wall controllers with touch-sensitive surface (touch pad), LCD with blue backlight and IR receiver
- Wall controller allows selecting the audio source and volume, treble, bass adjustment for each zone individually
- Incl. wall hub for up to 6 wall controllers
- Incl. IR remote control

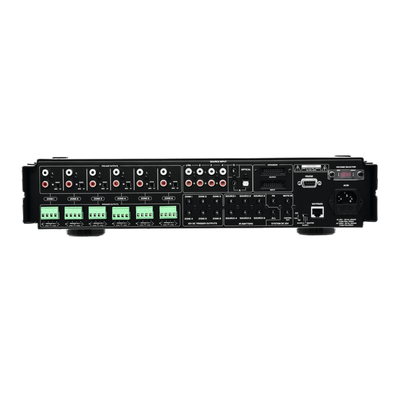

- Signal inputs: 4 x stereo RCA, 2 x 3.5 mm jack and 1 x Toslink for digital audio signals
- Speaker connection via terminal blocks
- 6 zone status indicators on the front panel
- Automatic gain control selectable for level matching of signal sources
- Terminals for IR emitters (accessory) allow extending the IR signals from the remote controls of the signal sources
- RS232 port enables two-way communication with a home automation system
- Trigger input for muting
- 6 trigger outputs for switching external amplifiers
- Control: IR remote control
- PC connect: RJ45 (F) mounting version
- Housing design: (19") 48.3 cm rack installation 2 U
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 1250 W |
| output: | 12x 25 W RMS (8 ohms) |
| 12x 50 W RMS (4 ohms) | |
| Power connection: | Mains input IEC connector (M) mounting version via Power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| Control: | IR remote control |
| S/N ratio: | >85 dB |
| Mode of operation: | Class D |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Width: | 48,3 cm |
| Height: | 8,9 cm |
| Depth: | 42 cm |
| Weight: | 12,70 kg |
| Remote control | |
| Battery: | 2 x 1.5 V AAA Micro R03 zinc carbon (provided) |
| Output power sine: | |
| Stereo 4 ohms: | 2 x 50 W per zone |
| Stereo 8 ohms: | 2 x 25 W per zone |
| 8 ohms bridged: | 6 x 100 W |
| Distortion: | 0.1 % (1 kHz) |
| Input sensitivity: | 250 mV |
| Input impedance: | >47 kohms |
| Inputs: | |
| 1-4: | RCA L/R |
| 5: | 3.5 mm stereo jack |
| 6: | 3.5 mm stereo jack and Toslink |
| Speaker connectors: | Terminal block |
| Output hub/keypad: | RJ-45 |
| Home automation interface: | RS-232 |
| Muting: | 12 V DC, via 3.5 mm mono jack |
| Trigger output: | 12 V DC, via 3.5 mm mono jack |
| IR emitter connectors: | 12 V DC, via 3.5 mm mono jack |
| LED indicators (per channel): | standby/on, peak |
| Protection circuits: | short-circuit, overheat, overload |
