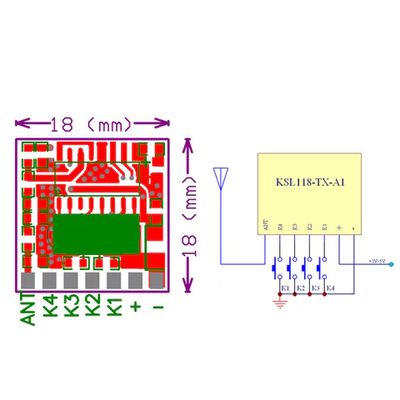

433.92MHz Transmitter 4 Channel 3-24VDC

• Frequency: 433.92 MHz
• Transmission Power: 11 dBm
• Range: 25 meters
• Transmission Current: 10 mA
• Standby Current: Less than 3 UA
• Firing Rate: Maximum 10 kB/s
• Frequency Deviation: +/- 7.5 kHz / Narrowband Transmission
• Modulation: ASK
• Operating Voltage: DC 3 V?24 V
• Customizable Special Code: MCU Type. Optional fixed coding type: PT2262 / EV1527 / HT6P20B
• Each module has a unique ID address code.
• The four-key code of all modules K1?K4 is identical.
• Key data: A, B, C, and D groups with 4 inputs each can be combined into 15 groups.
• Dimensions 18 x 18 mm (without pins)

Manufacturer
Qiai Wireless Electronic Commerce Co., Ltd Adresse: 205, Building 5, Hongguan Innovation Talent Industrial Park, Longzhu Community, Buji Street, Longgang District, Shenzhen, China E-Mail-Adresse: qiai@qiachip.com Telefon: 13802282943
