4-channel headphone amplifier - LH-030

Item number: 6010355030

Category: Headphone amplifier

39,90 €

including 19% VAT. , (Standard)

From Price per unit
2 38,70 €
Available

Shipping time: 2 - 5 workdays

Description

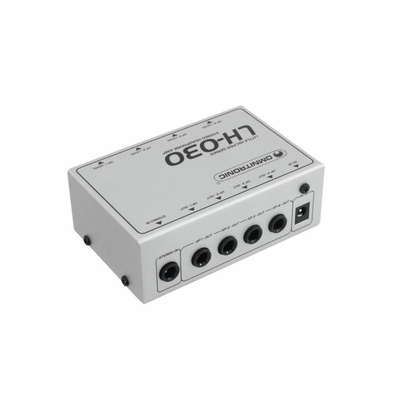

4-channel headphone amplifier - LH-030
  • Distributes the signal of 1 audio source to 4 sets of headphones
  • 4 channels with separate level controls and headphone outputs
  • All connections via 6.3 mm jacks (1/4")

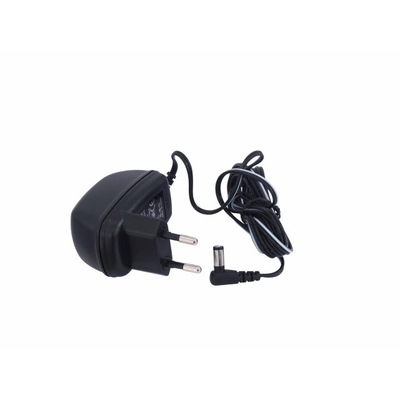

  • Operation via supplied power unit

Technical specifications:

Power supply: 12 V DC, 150 mA
Input impedance: 100 kohms unbal.
Max. input level: +14 dB
Input impedance: 100 kohms
Output impedance: 51 ohms
Gain: 20 dB/channel
T.H.D.: 0.008 %
Frequency range: 20-20000 Hz
S/N ratio: >90 dB
Dimensions: 113 x 73 x 40 mm
Weight: 340 g
