32 channel live mixer CFL-3242

Item number: 6010060375

Category: Stage mixer

799,00 €

including 19% VAT. , (Standard)

Available

Shipping time: 2 - 5 workdays

piece

Description

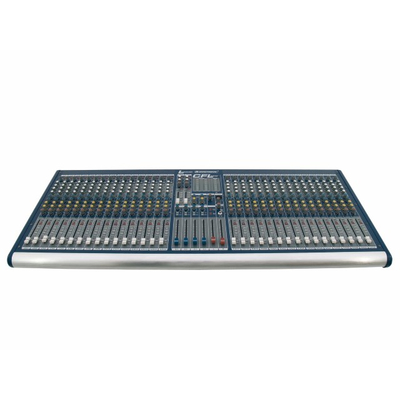

32 channel live mixer   CFL-3242
  • 32 mono inputs with XLR sockets and balanced line inputs
  • +48V phantom power per channel
  • 2 stereo inputs via balanced jacks
  • 2 stereo effect returns
  • Insert for every mono channel
  • High pass filter and 3-band EQ with semi-parametric mids for all mono inputs
  • 4 groups for levelling complete signal groups (e.g. drums)
  • Mutes for every channel
  • 4 aux send (2 pre, 2 post) per channel for controlling the effects and for monitoring
  • Separate master, group, monitor outputs
  • 100 mm faders
  • Precise 12-digit LED meter in subgroups and stereo master

Technical specifications:

Power supply: 115/230 V AC, 50/60 Hz ~
Power consumption: 100 W

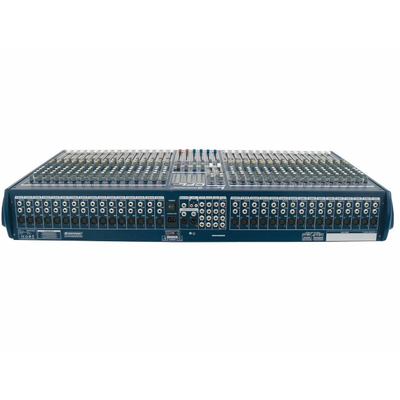

Inputs:
32 mono XLR or balanced 6.3 mm jacks
32 inserts 6.3 mm jacks
2 stereo 6.3 mm jacks
4 Aux-Return balanced 6.3 mm jacks
Outputs:
2 Main Mix Out XLR or balanced 6.3 mm jacks
1 Monitor balanced 6.3 mm jack
4 Group Out 6.3 mm jack
4 Aux-Send balanced 6.3 mm jack
Rec Out RCA
Frequency range: 10 Hz - 60 kHz, ±3 dB
Dimensions (WxDxH): 1290 x 530 x 160 mm
Weight: 19 kg
Shipping weight: 28.10 kg
