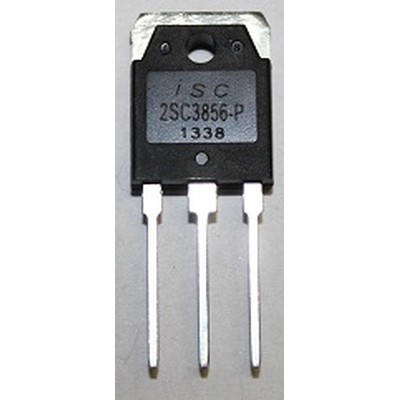

2SC3856 NPN 200V 15A TO 218
Description
SC3856
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 130
Maximum collector-base voltage |Ucb|, V: 200
Maximum collector-emitter voltage |Uce|, V: 0
Maximum emitter-base voltage |Ueb|, V: 0
Maximum collector current |Ic max|, A: 15
Maksimalna temperatura (Tj), °C: 150
Transition frequency (ft), MHz: 20
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 20
Noise Figure, dB: -
Package of 2SC3856 transistor: TO218
