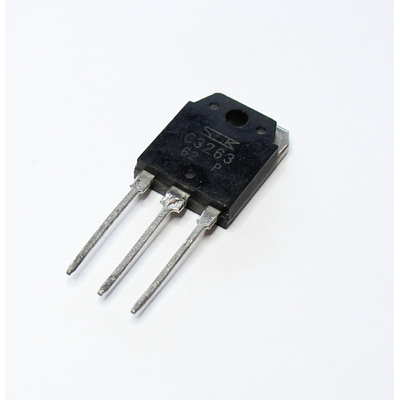

2SC3263 NPN 230V 15A 130W TO218

Item number: 2SC3263

Category: 2SC...

1,75 €

including 19% VAT. , (Standard)

From piece Price per unit
3 1,70 €
In stock!

Shipping time: 2 - 5 workdays

piece

Description

2SC3263 NPN 230V 15A 130W TO218
    Material of Transistor: Si
    Polarity: NPN
    Maximum Collector Power Dissipation (Pc): 130 W
    Maximum Collector-Base Voltage |Vcb|: 230 V
    Maximum Collector-Emitter Voltage |Vce|: 230 V
    Maximum Emitter-Base Voltage |Veb|: 6 V
    Maximum Collector Current |Ic max|: 15 A
    Max. Operating Junction Temperature (Tj): 125 °C
    Transition Frequency (ft): 60 MHz
    Forward Current Transfer Ratio (hFE), MIN: 60
    Noise Figure, dB: -
    Package: TO218
