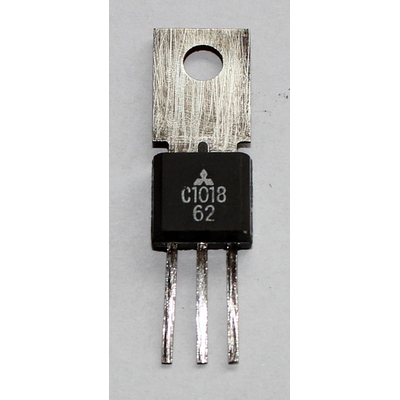

2SC1018 NPN 75V 1A 4W TO 218
Description
2SC1018 NPN 75V 1A 4W TO 218
-
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 4
Maximum collector-base voltage |Ucb|, V: 75
Maximum collector-emitter voltage |Uce|, V: 0
Maximum emitter-base voltage |Ueb|, V: 4
Maximum collector current |Ic max|, A: 1
Maksimalna temperatura (Tj), °C: 175
Transition frequency (ft), MHz: 12
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 20
Noise Figure, dB: -
Package of 2SC1018 transistor: TO218
