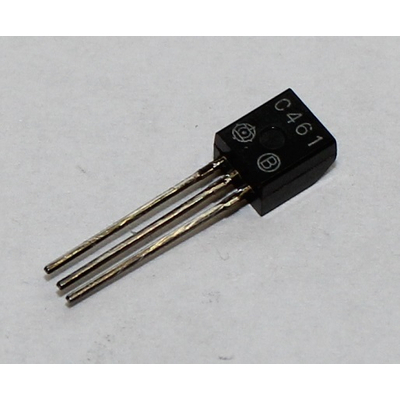

2SC 461 NPN 30V 0,1A 200mW TO 92
Description
2SC461
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 0.2
Maximum collector-base voltage |Ucb|, V: 30
Maximum collector-emitter voltage |Uce|, V: 30
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.1
Maksimalna temperatura (Tj), °C: 125
Transition frequency (ft), MHz: 115
Collector capacitance (Cc), pF: 3
Forward current transfer ratio (hFE), min: 35-200 @ 2mA
Noise Figure, dB: -
Package of 2SC461 transistor: TO 92
