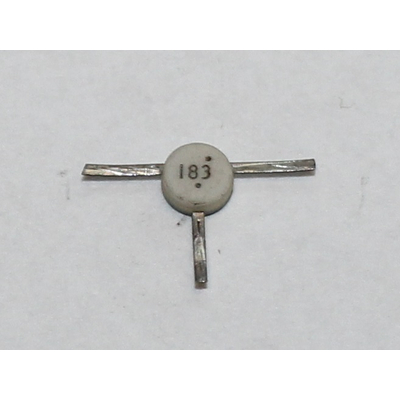

2SC 183 NPN 20V 0,03A 100mW TO 51
Description
2SC 183 NPN 20V 0,03A 100mW TO 51
- Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.1 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Collector-Emitter Voltage |Vce|: 18 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.03 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 75 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Noise Figure, dB: -
Package: TO51
