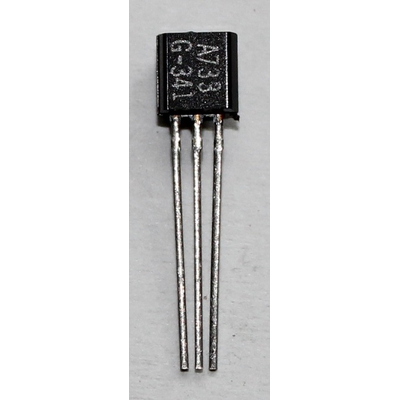

2SA 733 PNP 40V 0,3A TO 92
Description
2SA733
Material of transistor: Si
Polarity: PNP
Maximum collector power dissipation (Pc), W: 0.25
Maximum collector-base voltage |Ucb|, V: 50
Maximum collector-emitter voltage |Uce|, V: 40
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.3
Maksimalna temperatura (Tj), °C: 175
Transition frequency (ft), MHz: 90
Collector capacitance (Cc), pF: 12
Forward current transfer ratio (hFE), min: 40
Noise Figure, dB: -
Package of 2SA733 transistor: TO92
