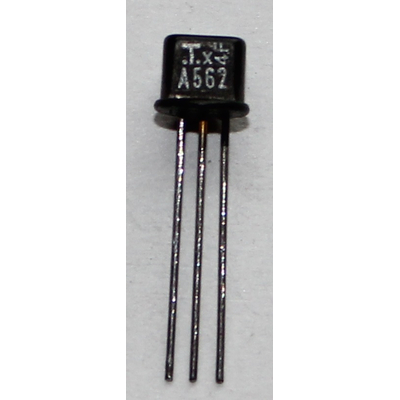

2SA 562 PNP 30V 0,4A TO 98.1
Description
2SA562
Material of transistor: Si
Polarity: PNP
Maximum collector power dissipation (Pc), W: 0.3
Maximum collector-base voltage |Ucb|, V: 30
Maximum collector-emitter voltage |Uce|, V: 30
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.4
Maksimalna temperatura (Tj), °C: 125
Transition frequency (ft), MHz: 70
Collector capacitance (Cc), pF: 25
Forward current transfer ratio (hFE), min: 40
Noise Figure, dB: -
Package of 2SA562 transistor: TO98-1
