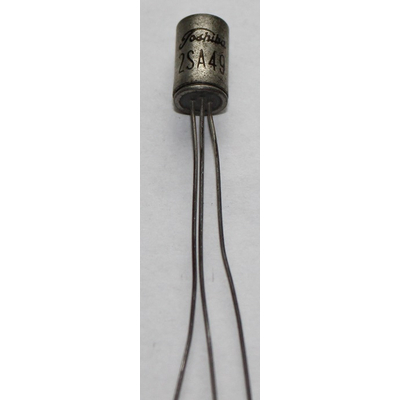

2SA 49 PNP 18V 0,005A TO 1
Description
2SA49
Material of transistor: Ge
Polarity: PNP
Maximum collector power dissipation (Pc), W: 0.06
Maximum collector-base voltage |Ucb|, V: 18
Maximum collector-emitter voltage |Uce|, V: 0
Maximum emitter-base voltage |Ueb|, V: 12
Maximum collector current |Ic max|, A: 0.005
Maksimalna temperatura (Tj), °C: 75
Transition frequency (ft), MHz: 5
Collector capacitance (Cc), pF: 13
Forward current transfer ratio (hFE), min: 30
Noise Figure, dB: -
Package of 2SA49 transistor: TO1
