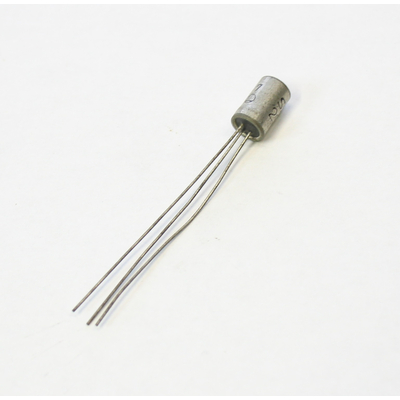

2SA 235 PNP 20V 0,01A 0,08W TO1
Description
2SA 235 PNP 20V 0,01A 0,08W TO1
- Material of transistor: Ge
Polarity: PNP
Maximum collector power dissipation (Pc), W: 0.08
Maximum collector-base voltage |Ucb|, V: 20
Maximum collector-emitter voltage |Uce|, V: 0
Maximum emitter-base voltage |Ueb|, V: 1
Maximum collector current |Ic max|, A: 0.01
Maksimalna temperatura (Tj), °C: 75
Transition frequency (ft), MHz: 65
Collector capacitance (Cc), pF: 3
Forward current transfer ratio (hFE), min: 90
Noise Figure, dB: -
Package of 2SA235 transistor: TO1
