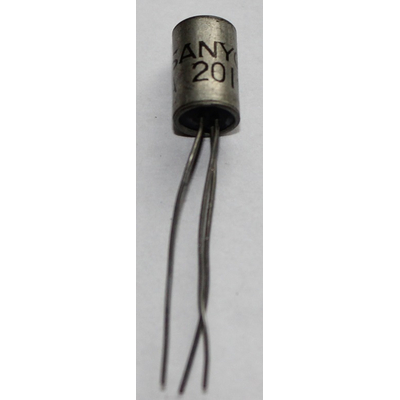

2SA 201 NPN 15V 0,015A TO 1
Description
2SA201
Material of transistor: Ge
Polarity: PNP
Maximum collector power dissipation (Pc), W: 0.1
Maximum collector-base voltage |Ucb|, V: 15
Maximum collector-emitter voltage |Uce|, V: 0
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.015
Maksimalna temperatura (Tj), °C: 75
Transition frequency (ft), MHz: 3
Collector capacitance (Cc), pF: 13
Forward current transfer ratio (hFE), min: 50
Noise Figure, dB: -
Package of 2SA201 transistor: TO1
