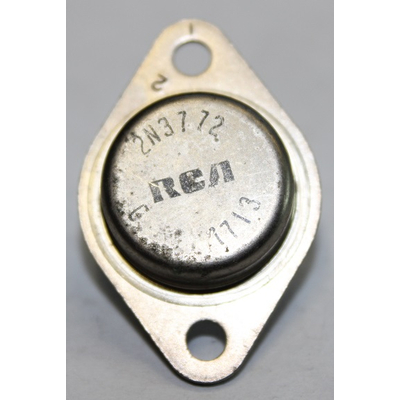

2N3772 NPN 100V 20A 150W TO3
Description
2N3772 NPN 100V 20A 150W TO3
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 150 W
- Maximum Collector-Base Voltage |Vcb|: 100 V
- Maximum Collector-Emitter Voltage |Vce|: 80 V
- Maximum Emitter-Base Voltage |Veb|: 7 V
- Maximum Collector Current |Ic max|: 2 A
- Max. Operating Junction Temperature (Tj): 200 °C
- Transition Frequency (ft): 0.2 MHz
- Forward Current Transfer Ratio (hFE), MIN: 15
- Noise Figure, dB: -
- Package: TO-3
