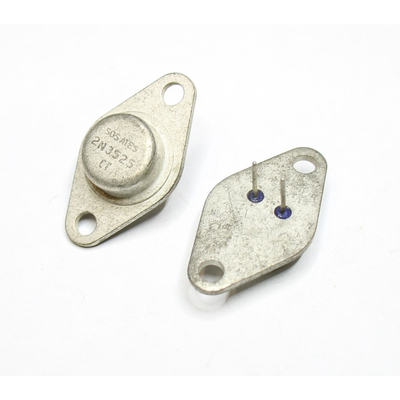

2N3625 NPN 75V 10A 30W TO61
Description
2N3625 NPN 75V 10A 30W TO61
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 30 W
- Maximum Collector-Base Voltage |Vcb|: 75 V
- Maximum Collector-Emitter Voltage |Vce|: 40 V
- Maximum Collector Current |Ic max|: 10 A
- Max. Operating Junction Temperature (Tj): 175 °C
- Transition Frequency (ft): 200 MHz
- Collector Capacitance (Cc): 50 pF
- Forward Current Transfer Ratio (hFE), MIN: 40
- Noise Figure, dB: -
- Package: TO61
