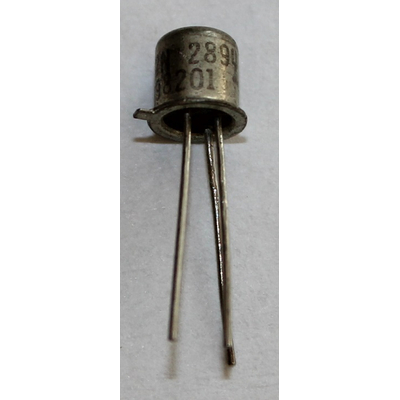

2N2894 PNP 12V 0,2A 0,36W TO18
Description
2N2894 PNP 12V 200mA 360mW TO18
- Material of Transistor: Si
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 0.36 W
- Maximum Collector-Base Voltage |Vcb|: 12 V
- Maximum Collector-Emitter Voltage |Vce|: 12 V
- Maximum Emitter-Base Voltage |Veb|: 4 V
- Maximum Collector Current |Ic max|: 0.2 A
- Max. Operating Junction Temperature (Tj): 200 °C
- Transition Frequency (ft): 400 MHz
- Collector Capacitance (Cc): 6 pF
- Forward Current Transfer Ratio (hFE), MIN: 30
- Noise Figure, dB: -
- Package: TO18
