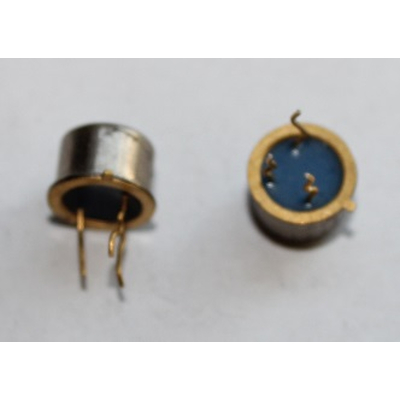

2N1711 NPN 75V 0,6A 0,8W TO-5 (Print ready)
Description
2N1711 NPN 75V 0,6A 0,8W TO-5 (Print ready)
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 0.8 W
- Maximum Collector-Base Voltage |Vcb|: 75 V
- Maximum Collector-Emitter Voltage |Vce|: 50 V
- Maximum Emitter-Base Voltage |Veb|: 7 V
- Maximum Collector Current |Ic max|: 0.6 A
- Max. Operating Junction Temperature (Tj): 175 °C
- Transition Frequency (ft): 70 MHz
- Collector Capacitance (Cc): 25 pF
- Forward Current Transfer Ratio (hFE), MIN: 100
- Noise Figure, dB: -
- Package: TO5
