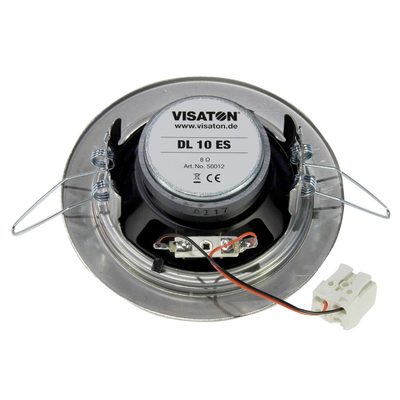

10 cm (4") ceiling speaker 30W 8 Ohm stainless steel - DL 10 ES
Description
10 cm (4") ceiling speaker 30W 8 Ohm stainless steel - DL 10 ES
10 cm (4") ceiling-mounted speaker made of stainless steel with brushed finish. Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms, electrical connection by spring-loaded terminal clips. A compact solution for home and professional use with good sound qualities. ? Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h) ? Up to the standards of the Germanischer Lloyd (requirements for electrical equipment / low temperature) Speaker cabinet systems for concrete ceilings are available from KAISER, 58579 Schalksmühle, Germany. The KompaX cabinet series is suitable for our ceiling speakers. Some additional front parts maybe necessary (front rings, mineral fibreboard etc.). More details are available on the Homepage of KAISER (Housing for lamps and loudspeakers). In order to get more detailed information, press the "Technical information" button of the particular product. Fire protection housing systems (F30) are also available (FlamoX).
Typical applications
- For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
- suitable for outdoor applications
Attributes
- Moisture-resistant membrane
- UV-resistant
- Meatal basket, non-corrodible
- Functionally at low temperature according to EN 60068-2-1 (-40 °C; 96 h)
- Up to the standards of the Germanischer Lloyd (requirements for electrical equipment/low temperature)
- Ball-resistant
Technical specifications
Rated power |
20 W |
---|---|
Maximum power |
30 W |
Nominal impedance Z |
8 Ohm |
Frequency response |
75-20000 Hz |
Mean sound pressure level |
86 dB ( 1W/1 m) |
Opening angle (-6 dB) |
82°/4000 Hz |
Excursion limit |
+/-2.5 mm |
Resonance frequency fs |
140 Hz |
Magnetic induction |
0.7 T |
Magnetic flux |
130 µWb |
Height of front pole-plate |
4 mm |
Voice coil diameter |
20 mm |
Height of winding |
6 mm |
Cutout diameter |
110 mm |
Net weight |
0.4 kg |
Sound pressure level |
90 dB (1 W/1 m) @ 2100 Hz |
Colour |
stainless steel with brushed finish |
Connections |
Spring terminals |
Mounting depth |
43 mm |
Length of cable |
0.1 m |
Protective system |
IP 54 *) |
Temperature range |
-40 ... 110 °C |
