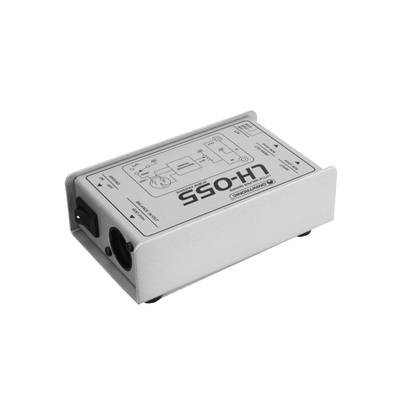

1 channel DI-Box passiv - LH-055
Description
1 channel DI-Box passiv - LH-055
- Passive DI box
- 1 high-impedance signal input, 6.3 mm jack
- 1 low-impedance XLR output
- 1 instrument feed-through output, 6.3 mm jack
- Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Ground-lift switch eliminates signal interference and ground loop problems
- Rugged gray metal housing
Technical specifications
| Input impedance: | 50 kohms |
| Output impedance: | 600 ohms |
| S/N ratio: | >95 dB |
| Input connector: | 6.3 mm jack, unbal. |
| Output connectors: | XLR, bal. |
| 6.3 mm jack, unbal. (parallel out) | |
| Dimensions: | 127 x 74 x 45 mm |
| Weight: | 0,65 kg |
| Frequency range: | 15 - 30000 Hz |
| Height: | 4,5 cm |
| Depth: | 7,4 cm |
| Width: | 12,7 cm |
