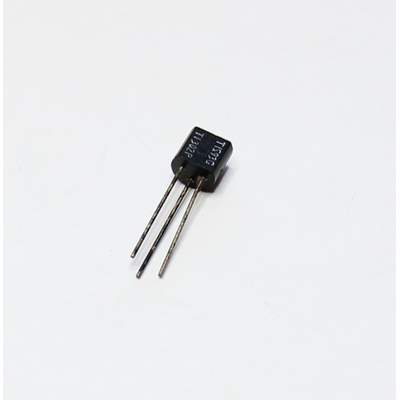

TIS93 Transistor PNP 40V 400mA 625mW TO92
Beschreibung
TIS93 Transistor PNP 40V 400mA 625mW TO92
- Material of Transistor: Si
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 0.625W
- Maximum collector base voltage |Vcb|: 40V
- Maximum Collector-Emitter Voltage |Vce|: 40V
- Maximum Emitter-Base Voltage |Veb|: 5V
- Maximum Collector Current |Ic max|: 0.4A
- Max. Operating Junction Temperature (Tj): 150°C
- Forward Current Transfer Ratio (hFE)
- MIN: 100 noise
- Figure, dB: -
- Package: TO92
