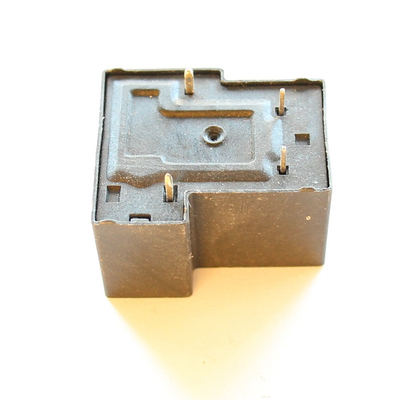

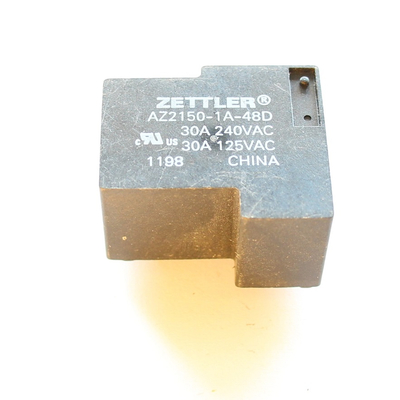

Relais 48VDC 40A 1 x ein - AZ2150-1A-48D Zettler
Beschreibung
Relais 48VDC 40A 1 x ein - AZ2150-1A-48D Zettler
| Artikelnummer | AZ2150-1A-48D |
| RoHS: | Yes |
| Type: | Power Relay |
| DC Coil Voltage: | 48 V |
| Maximum AC Voltage Rating: | 300 V |
| Family: | AZ2150 |
| Relay Construction: | Non-Latching |
| Contact Material: | Silver Cadmium Oxide |
| Maximum DC Voltage Rating: | 30 V |
| AC Coil Voltage: | N/A |
| Coil Current: | 18.75 mA |
| Packaging: | N/A |
| Seal: | Unsealed |
| Termination Style: | PC Pin |
| Coil Resistance: | 2.56 KOhm |
| Contact Arrangement: | SPST-NO |
| Maximum Current Rating: | 40 A |
| Pin_Count: | 4 |
| Maximum Pick-Up Voltage: | 36 VDC |
| Product Weight: | 25 g |
| Minimum Dropout Voltage: | >4.8 VDC |
| Mounting: | Through Hole |
| Contact Form: | 1 Form A |
| Maximum Power Rating: | 900,10 W|kVA |
| Operating Temperature: | -55 to 100 °C |
| Dimension: | 31.8 x 26.9 x 19.1mm mm |
| Package Type: | N/A |
| Operate Time: | 8 ms |
| Coil Suppression Diode: | No |
| Push to Test Button: | No |
| Led Indicator: | No |
