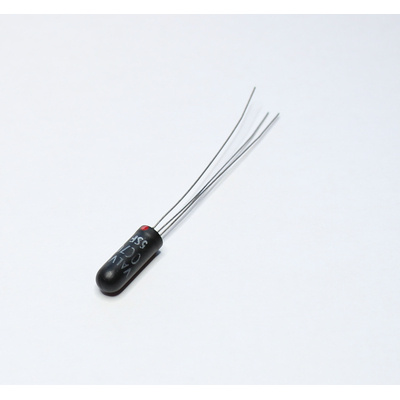

OC70 20V 125mW 10mA X01 Valvo
Beschreibung
OC70 20V 125mW 10mA X01 Valvo
Material of Transistor: Ge Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.125 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 0.01 A
Max. Operating Junction Temperature (Tj): 80 °C
Transition Frequency (ft): 0.2 MHz
Collector Capacitance (Cc): 30 pF
Forward Current Transfer Ratio (hFE), MIN: 15
Noise Figure, dB: -
Package: X01
