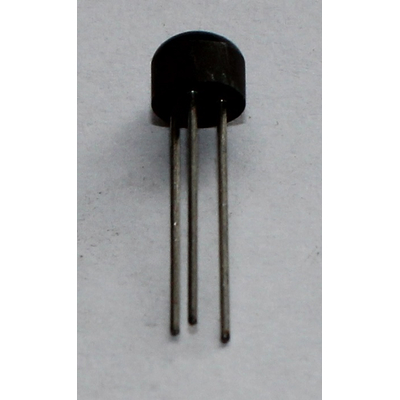

BF235 NPN 30V 30mA 300mW TO106

Artikelnummer: BF 235

Kategorie: BF... >

1,75 €

inkl. 19% USt. , zzgl. Versand (Standard)

auf Lager

Lieferzeit: 2 - 5 Werktage

Stück

Beschreibung

BF235 NPN 30V 30mA 300mW TO106
  • Material of transistor: Si
  • Polarity: NPN
  • Maximum collector power dissipation (Pc), W: 0.3
  • Maximum collector-base voltage |Ucb|, V: 30
  • Maximum collector-emitter voltage |Uce|, V: 30
  • Maximum emitter-base voltage |Ueb|, V: 4
  • Maximum collector current |Ic max|, A: 0.03
  • Maksimalna temperatura (Tj), °C: 125
  • Transition frequency (ft), MHz: 250
  • Collector capacitance (Cc), pF: 1
  • Forward current transfer ratio (hFE), min: 40
  • Noise Figure, dB: -
  • Package of BF235 transistor: TO106
