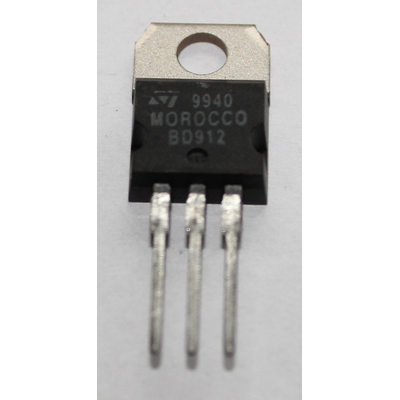

BD912 PNP 100V 15A 90W TO220
Beschreibung
BD912 PNP 100V 15A 90W TO220
- Material of Transistor: Si
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 90 W
- Maximum Collector-Base Voltage |Vcb|: 100 V
- Maximum Collector-Emitter Voltage |Vce|: 100 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 15 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 3 MHz
- Forward Current Transfer Ratio (hFE), MIN: 15
- Noise Figure, dB: -
- Package: TO220
