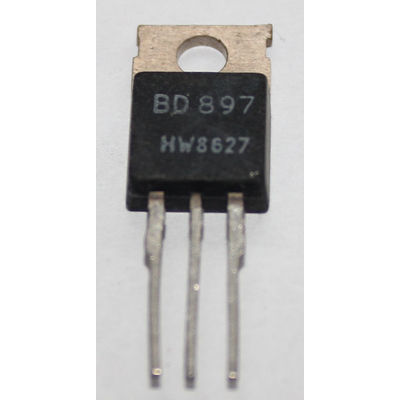

BD897 NPN 60V 8A 70W TO220
Beschreibung
BD897 NPN 60V 8A 70W TO220
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 70 W
- Maximum Collector-Base Voltage |Vcb|: 60 V
- Maximum Collector-Emitter Voltage |Vce|: 60 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 8 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 1 MHz
- Forward Current Transfer Ratio (hFE), MIN: 750
- Noise Figure, dB: -
- Package: TO220
