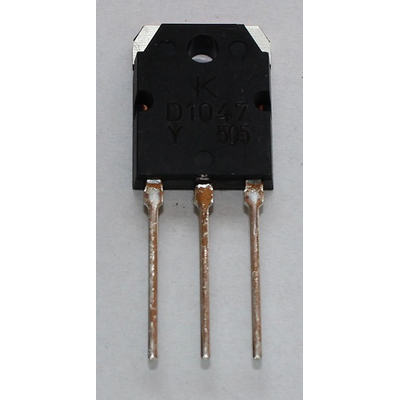

2SD1047 NPN 160V 12A 100W TO 247
Beschreibung
2SD1047
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 100
Maximum collector-base voltage |Ucb|, V: 160
Maximum collector-emitter voltage |Uce|, V: 140
Maximum emitter-base voltage |Ueb|, V: 6
Maximum collector current |Ic max|, A: 12
Maksimalna temperatura (Tj), °C: 150
Transition frequency (ft), MHz: 15
Collector capacitance (Cc), pF: 210
Forward current transfer ratio (hFE), min: 60
Noise Figure, dB: -
Package of 2SD1047 transistor: TO247
