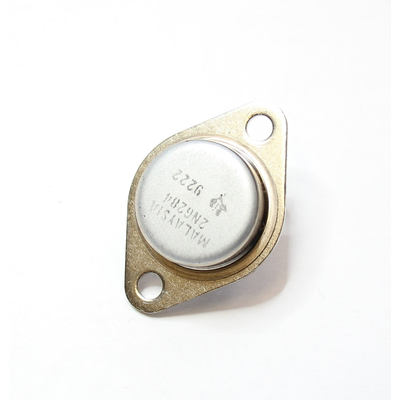

2N6284 NPN100V 20A 160W TO3
Beschreibung
2N6284 NPN100V 20A 160W TO3
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 160 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 20 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 600 pF
Forward Current Transfer Ratio (hFE), MIN: 750
Noise Figure, dB: -
Package: TO3
