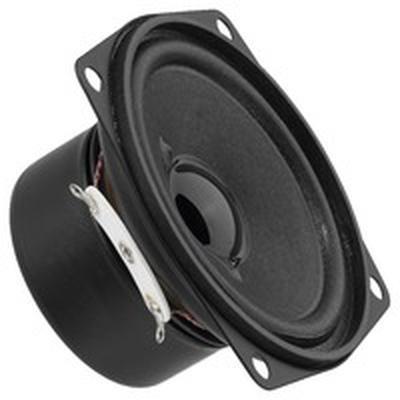

Universal loudspeaker 4 Ohms 8Wmax - SP-7 /5SQS
Description
Universal loudspeaker 4 ohms 8Wmax - SP-7 / SQS
- Magnetically shielded
- For standard applications
- Sound pressure from approx. 200 Hz
- Impedance 4 ohms
- resonant frequency (fs) ---
- Max. Frequency range & nbsp; f3-17000 Hz
- Maximum load capacity 8Wmax
- Rated Power (P) 4Wrms
- Avg. Sound pressure (1 W / m) from approx. 200 Hz
- Magnetic weight -

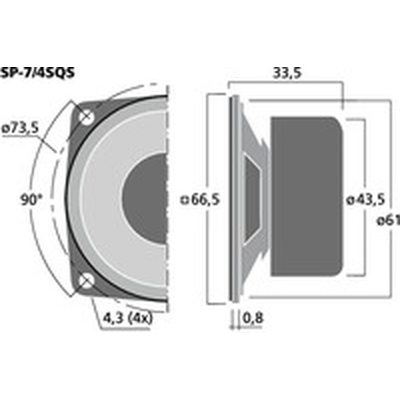

- Magnetic diameter Ø 43.5 mm
- Installation opening Ø 61 mm
- installation depth 34 mm
- pitch circle diameter Ø 73.5 mm
- Dimensions 66.5 x 66.5 mm (3 ")
- Max. Operating temperature 0-40° C
- Weight 139Gr -
