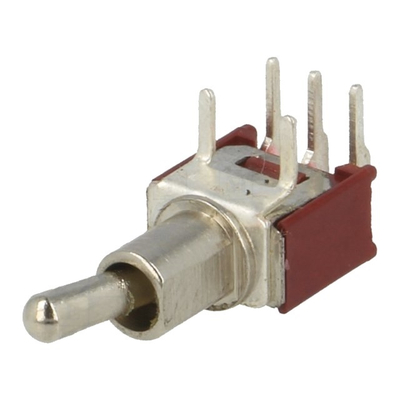

Subminiature toggle switch on/off/on 90 ° with center position
Description
Subminiature toggle switch on/off/on 90 ° with center position
- Manufacturer NINIGI
- Switch type: Lever switch
- Number of stable positions: 3
- Contact configuration: SP3T
- Switching mode: ON-OFF-ON
- Contact rating AC (resistive load): 1A / 250VAC
- Outputs: PCB mounting, 90°
- Mounting dimensions: Ø5mm
- Number of switching positions: 2
- Lever type: Round
- Operating temperature: -55...65°C
- Lever height: 5.4mm
- Housing dimensions: 8.3 x 5.2 x 8.9mm
- Max. Contact resistance 20 mOhm
- Electrical lifetime 20,000 cycles
