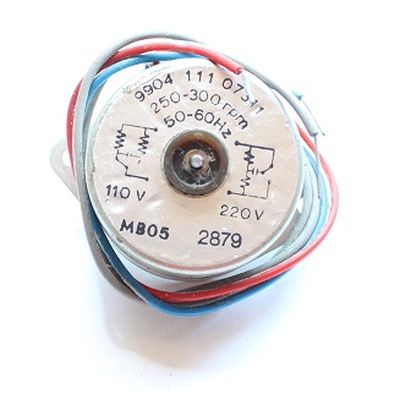

Reversible synchronous motor 110 / 220VAC 50 / 60Hz 250 / 300 PRM - 9904 1110 7311
Description
Reversible synchronous motor 110 / 220VAC 50 / 60Hz 250 / 300 PRM - 9904 1110 7311
The motor has 2 windings, each with 12 pole pairs. It can be operated with 240AC or 110VAC by connecting the windings in series or parallel.
The motor has 2 windings, each with 12 pole pairs. It can be operated with 240AC or 110VAC by connecting the windings in series or parallel.
- Brand --
- Power 1.7W/230V 0.8W/110V
- Motor type: Synchronous
- Supply voltage: 110/220VAC
- Phase 1
- Output speed: 250-300 RPM
- Connections: 4 approx. 150mm
- Windings: 2 x 15k?
- Mounting type: Flange mounting
- Shaft diameter: 2mm
- Shaft length: 7.8mm
- Rated current: 18mA
- Length: 23.9mm
- Motor dimensions: Ø 35 x 22 mm
- Total housing dimensions 50 x 24 mm
- Series 9904
- Recommended capacitor 100 nF
- Traces from storage
