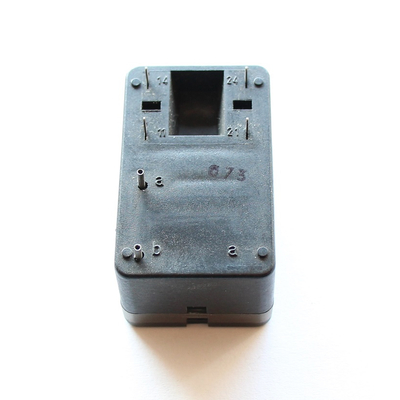

Relay 9VDC 10/60A 2 x off/(on) - 071-33-200 Rapa
Description
Relay 9VDC 10/60A 2 x off/(on) - 071-33-200 Rapa
- Manufacturer contact arrangement DPST-NO
DC coil voltage 9V
Coil current 290mA
Coil resistance 30 Ohm
Max. AC switching voltage 250V
Insulation via contacts 250VDC
Max. Switching capacity 2500W
Mounting THT
Termination type PC Pin
Number of connections 6
Relay construction Non-Latching
Minimum operating temperature -40^C
Max. Operating temperature 85°C
Dimensions 49 x 30 x 23mm
