Relay 6VDC 5A 1 x on/ (on) - REL 065 F

Item number: REL 065 F

Category: Relay 6VDC


2,25 €

including 19% VAT. , (Standard)

From piece Price per unit
3 2,18 €
6 2,11 €
25 1,91 €
In stock!

Shipping time: 2 - 5 workdays

piece


Description

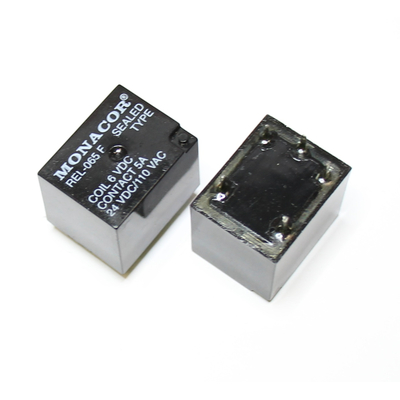

Relay 6VDC 5A 1 x on/(on) - REL 065 F
Universal DC relay sealed in a wash- and solder-proof manner.
    Manufacturer Monacor
    Relay type electromagnetic
    Contact configuration SPDT
    Nominal coil voltage 6VDC
    Contact current max. 5A
    Contact rating AC @R (with ohmic load) with ohmic load 5A / 110VAC
    Contact rating DC @R (with ohmic load) with ohmic load 5A / 24VDC
    Switching voltage max. 24VDC, max. 250VAC
    Relay design Interfaces Assembly THT
    Coil resistance 80 Ohm
    Coil voltage min. 3.5VDC
    Coil voltage max. 9VDCDimensions 21.5x12x17.5mm
    Power consumption of the coil 300mW
    Tightness class IP64
    Operating temperature -40...85°C
    Contact resistance 100 MOhm
    Contact material AgSnO2
