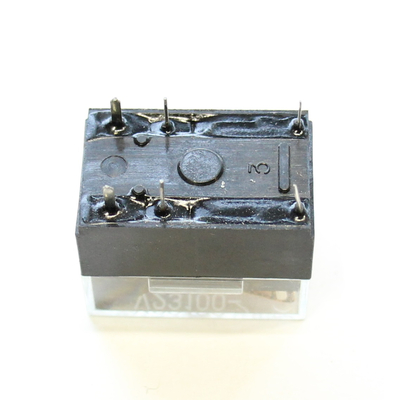

Relay 5VDC 6A ON/(ON) - V23100-W1205-A103
Description
Relay 5VDC 6A ON/(ON) - V23100-W1205-A103
- Contact configuration: 1 changeover contact
Coil side
Operating voltage: 5VDC
Nominal power (W): 0.45 / 0.6
Max. temperature (°C): 115
Contact side
Order code: Block 3 A103
Contact material: Gold-plated silver
Contact code: 21 21 ? 21
Max. switching voltage: 125VDC / 250VAC
Max. switching current: 6A
Max. switching capacity: 85W (DC) / 360VA (AC)
Limiting continuous current (A): 6 / 4
Other data
Permissible ambient temperature (°C): ?30 to +70 / ?40 to +60
Operate time (ms): approx. 7ms
Release time (ms): approx. 3ms
Max. switching frequency (ops/s): 20
Mechanical service life: 107
DC 24V/3A / AC 100V/3A
