Relay 5VDC 1 x on/(on) 1Amax - G5V-1
Description
Relay 5VDC 1 x on/(on) 1Amax - G5V-1
- Manufacturer OMRON Electronic Components
Relay type electromagnetic

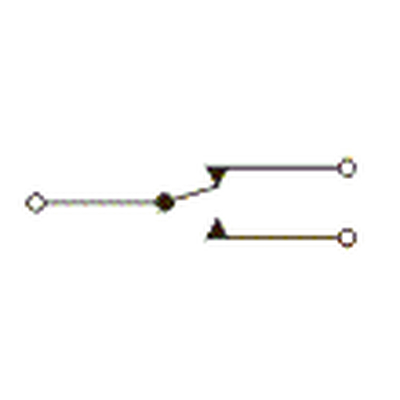

Contact configuration SPDT
Coil rated voltage 5V DC
Contact current max. 1A
Contact load capacity AC with resistive load 0.5A / 125VAC
Contact load capacity DC with resistive load 1A / 24VDC
Relay series G5V-1
Switching voltage max. 60VDC, max. 125VAC
Relay design subminiature
Mounting PCB
Coil resistance 166.7 Ohm
External dimensions 12.5x7.5x10mm
Power consumption of the coil 150mW
Operating temperature -30...70°C
Contact resistance 100 MOhm
Output pitch 2.54mm
Coil current 30mA
